MDYZ Series · Portable

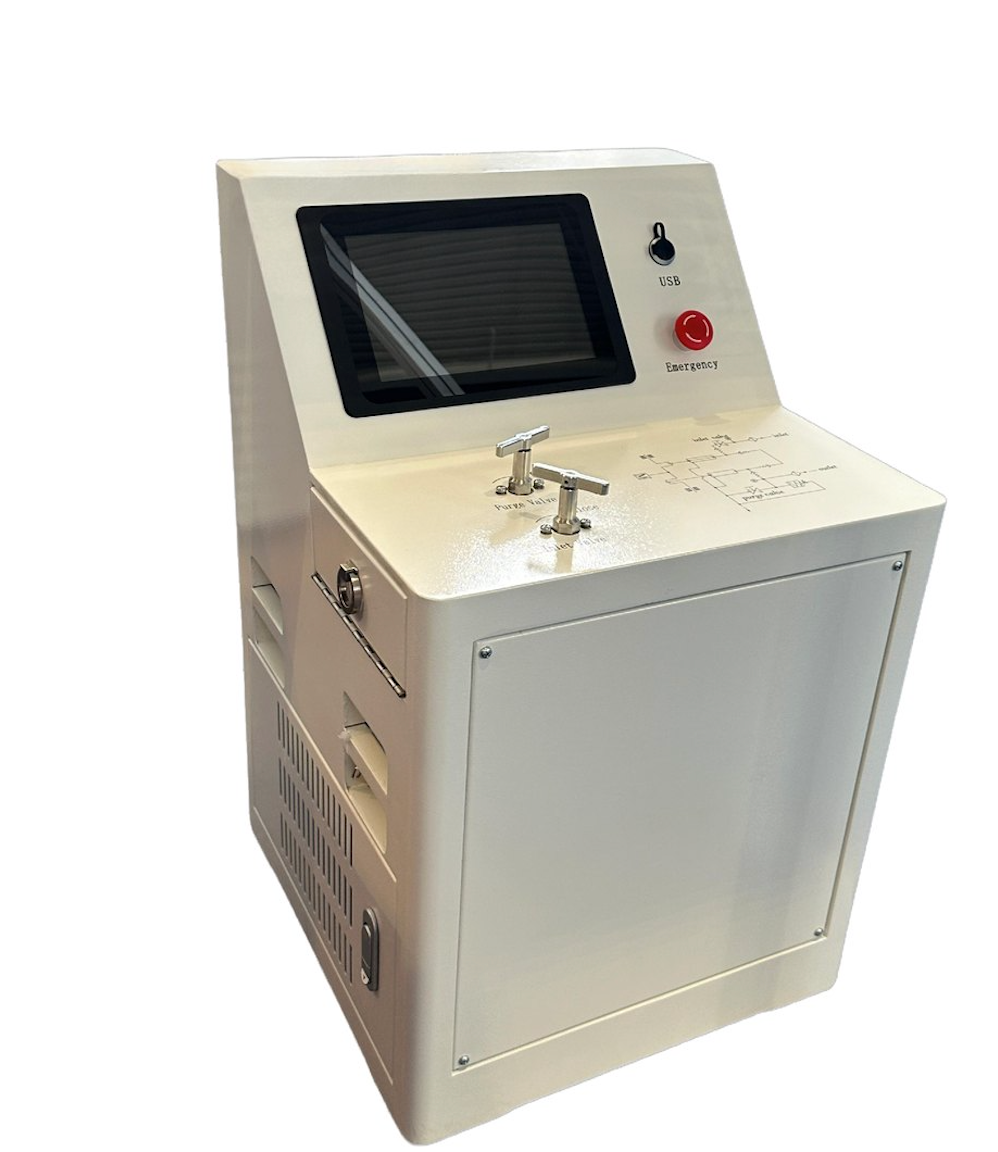

MDYZ3501A-3 Portable Electric Hydrogen Booster
A wheel-supported, two-stage gas booster driven by an adjustable-speed servo motor — boosting hydrogen, nitrogen or helium from 3–15 MPa up to 35 MPa on a 220 V, 50 Hz single-phase supply.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MDYZ3501A-3 |
| Gas media | Hydrogen (H2), nitrogen (N2) or helium (He) |
| Flow rate | 43 L/min at 3 MPa inlet pressure |
| Suction pressure | 3–15 MPa (upper limit configurable) |
| Maximum working pressure | 35 MPa (upper limit configurable) |
| Compression stages | Two-stage series piston compression |
| Drive method | Adjustable-speed servo motor |
| Peak power consumption | Approximately 2 kW |
| Power supply | 220 V, 50 Hz, single-phase |
| Ambient temperature | −20°C to +45°C |
| Gas particle content | Up to 40 µm |
| Dimensions (L × W × H) | 501.97 × 491.50 × 859.15 mm, excluding wheel height |
| Mechanical interfaces | M12 × 1.25, 60° spherical fittings (NPT 1/4) |
| Net weight | Approximately 90 kg |
Key Features
An adjustable-speed servo motor drives the two-stage series piston compression system.
Runs on a 220 V, 50 Hz single-phase supply with approximately 2 kW peak power consumption.
One model supports hydrogen, nitrogen or helium service, with configurable pressure limits.
Automatic stop at the set target pressure or operating-time limit, plus mechanical pressure relief and an electronic upper-pressure limit.
Control, Monitoring & Data Export
The control interface displays inlet and outlet pressure, operating status, speed selection, target pressure and operating-time settings.
Operating records can be viewed on the system and exported through the USB data-export interface.
Typical Applications
Where the MDYZ3501A-3 is working
01
University Laboratories
Controlled gas boosting for R&D. Adjustable speed, pressure monitoring and automatic-stop functions — trusted by Shanghai University.
02
Fuel Cell Testing
Pressure control for test setups. Two-stage compression with inlet and outlet pressure monitoring for R&D and validation work.
03
Helium Boosting & Recovery
One platform for three gases. Helium service is supported alongside hydrogen and nitrogen, with a suitable downstream receiving chamber.
04
On-Site Gas Boosting
Ground use or wheel-supported positioning. High-pressure mechanical interfaces connect the gas source and downstream receiving chamber.
Frequently Asked Questions
The MDYZ3501A-3 requires a 220 V, 50 Hz single-phase supply and a protective ground connection. Peak power consumption is approximately 2 kW.
Hydrogen, nitrogen or helium. Contact us with your gas type, inlet pressure and target pressure for configuration confirmation.
For hydrogen service, use a workshop equipped with a hydrogen alarm and forced ventilation, or operate in an open area. Follow the supplied instructions and all high-pressure piping safety requirements.
See the JD-ZQ-CHZY 3 kW direct-drive compressor, or contact us with your operating requirements.
