Electric Hydrogen Booster Series
Electric Hydrogen Booster Compressors
Oil-free, fully automatic hydrogen compression from 2–15 MPa inlet up to 70 MPa discharge — compact electric systems for laboratories, fuel cell test benches and small-scale refueling.
The Range at a Glance
Why Electric?
100% Oil-Free Compression
Clean hydrogen protects your fuel cells. Even trace oil can poison catalysts and shorten stack life.

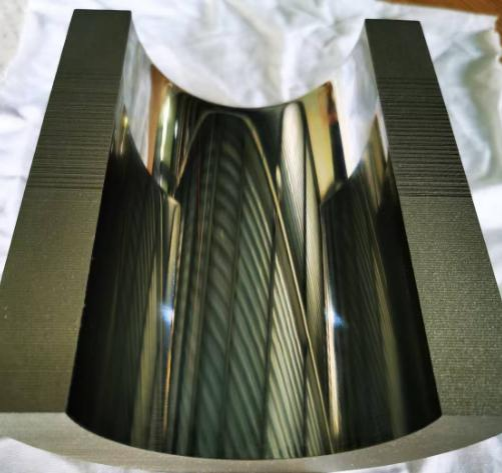

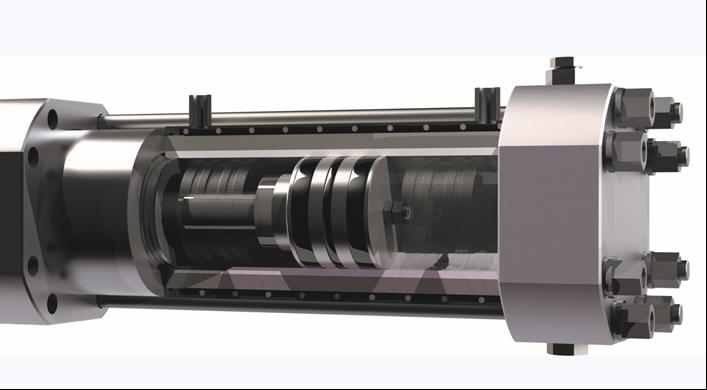

Hydraulic-drive compressors keep oil under pressure next to the gas circuit — one worn seal can contaminate your hydrogen. Diaphragm units avoid oil but bring rupture risk and costly maintenance. HydroXcel removes oil from the compression chamber entirely: the servo motor drives the piston directly. The result — outlet purity up to 99.99% with filtration, no oil changes, no oil-related downtime.
Compact Footprint
Half the size of a hydraulic station. Everything fits in one enclosure — no power pack, no pipework.

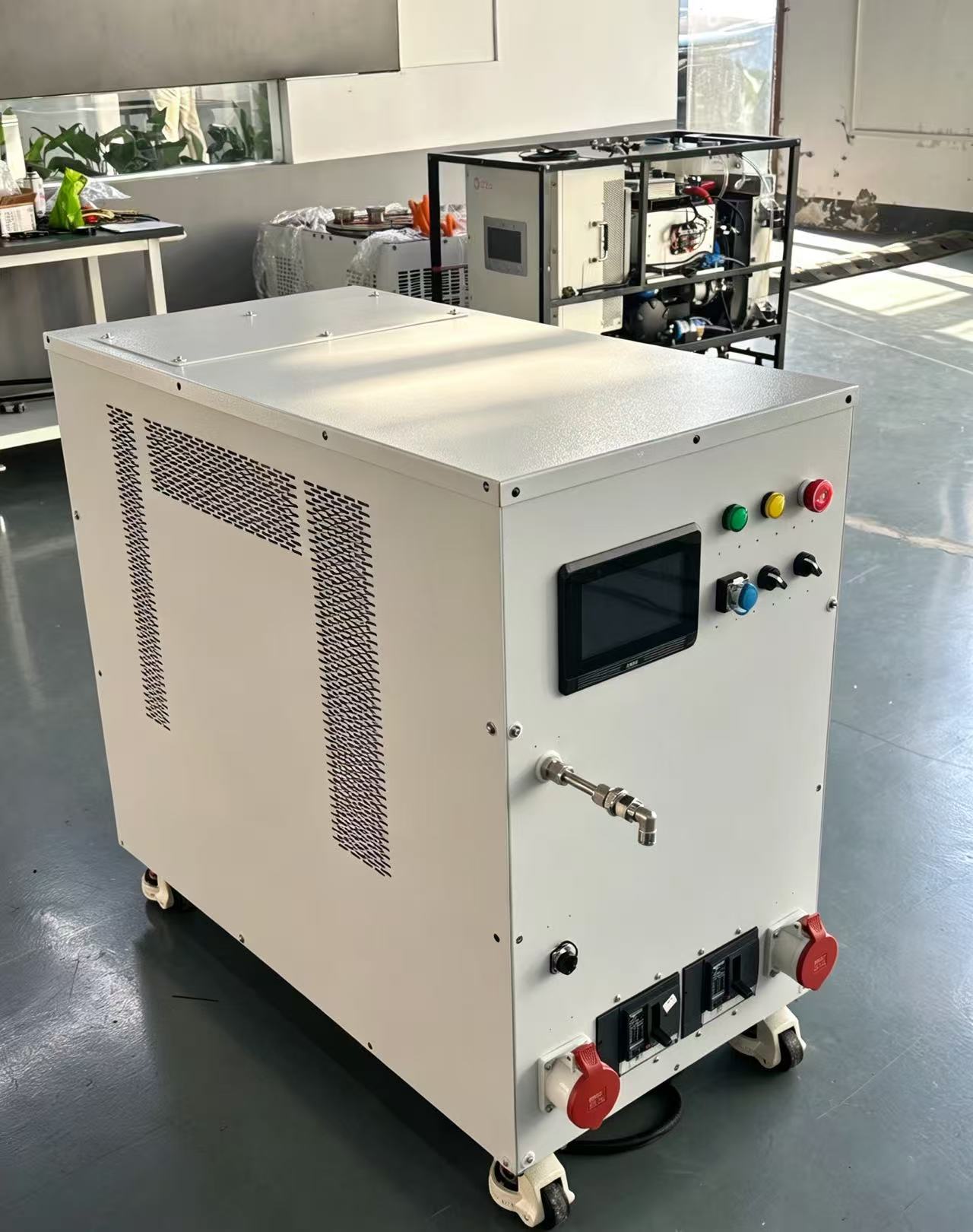

The JD-ZQ series stands on lockable casters and fits through standard doorways. The 90 kg MDYZ3501A-3 can be rolled between labs by one person. No foundation, no anchor bolts — position, connect, run. For crowded labs and retrofit projects, it is a decisive advantage.
Fully Automatic Operation
Set the pressure. Press start. Walk away.

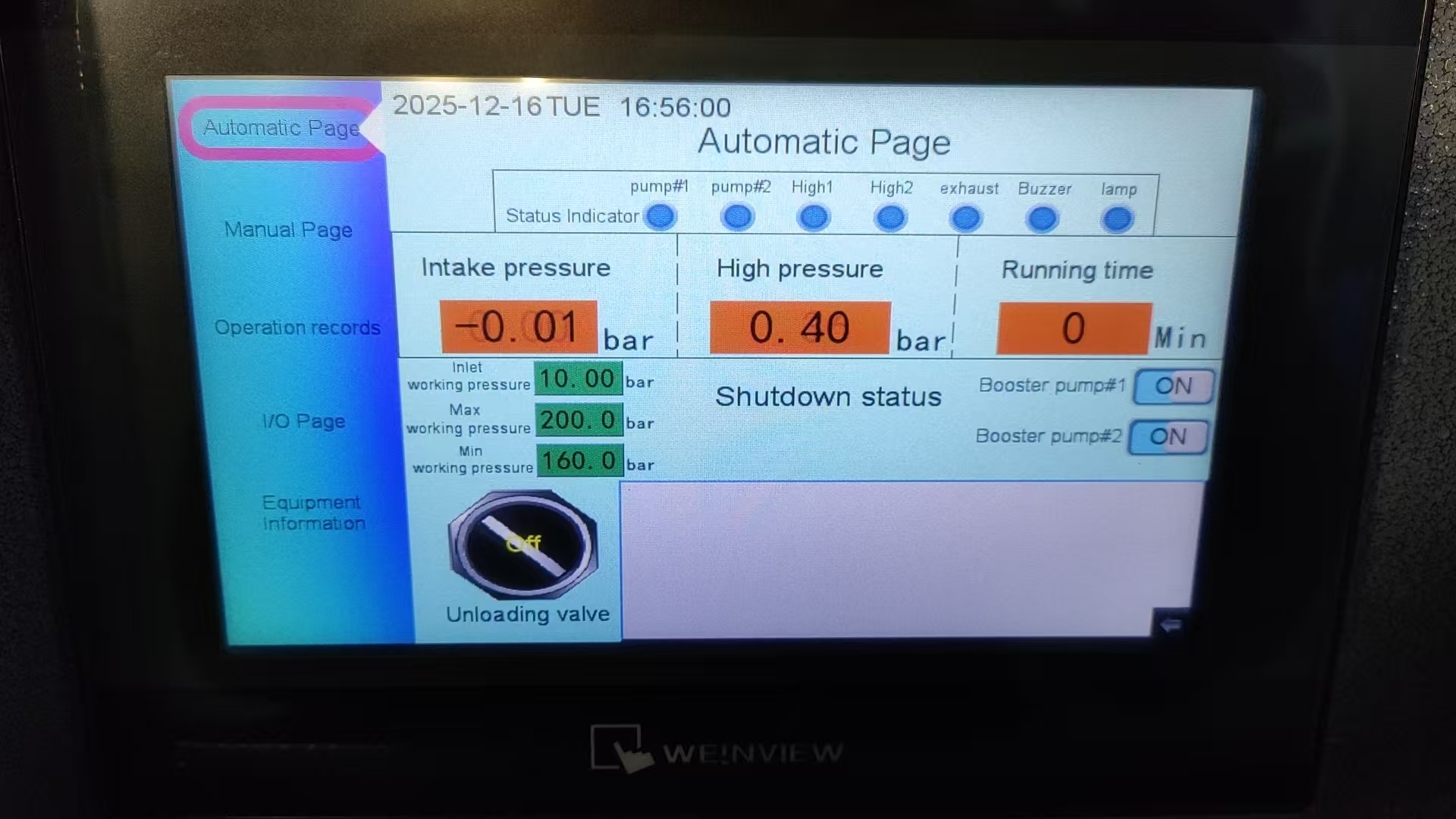

PLC control with closed-loop servo regulation ramps up, holds setpoints and shuts down automatically. Built-in protection covers over-pressure, over-temperature and motor faults — the unit alarms and stops safely. Overnight test runs and after-hours cylinder filling need no operator, and new staff can run it after a short introduction.
Multi-Gas Capability
One machine for H2, N2 and He.
Labs rarely use hydrogen alone — nitrogen for purging, helium for leak detection. The MDYZ3501A-3 handles all three with compatible, clean gas-contact materials. It even pays for itself: boost leftover helium from “empty” cylinders instead of venting it. Fewer machines, less space, simpler maintenance.
Typical Applications
Where our electric boosters are working every day
01

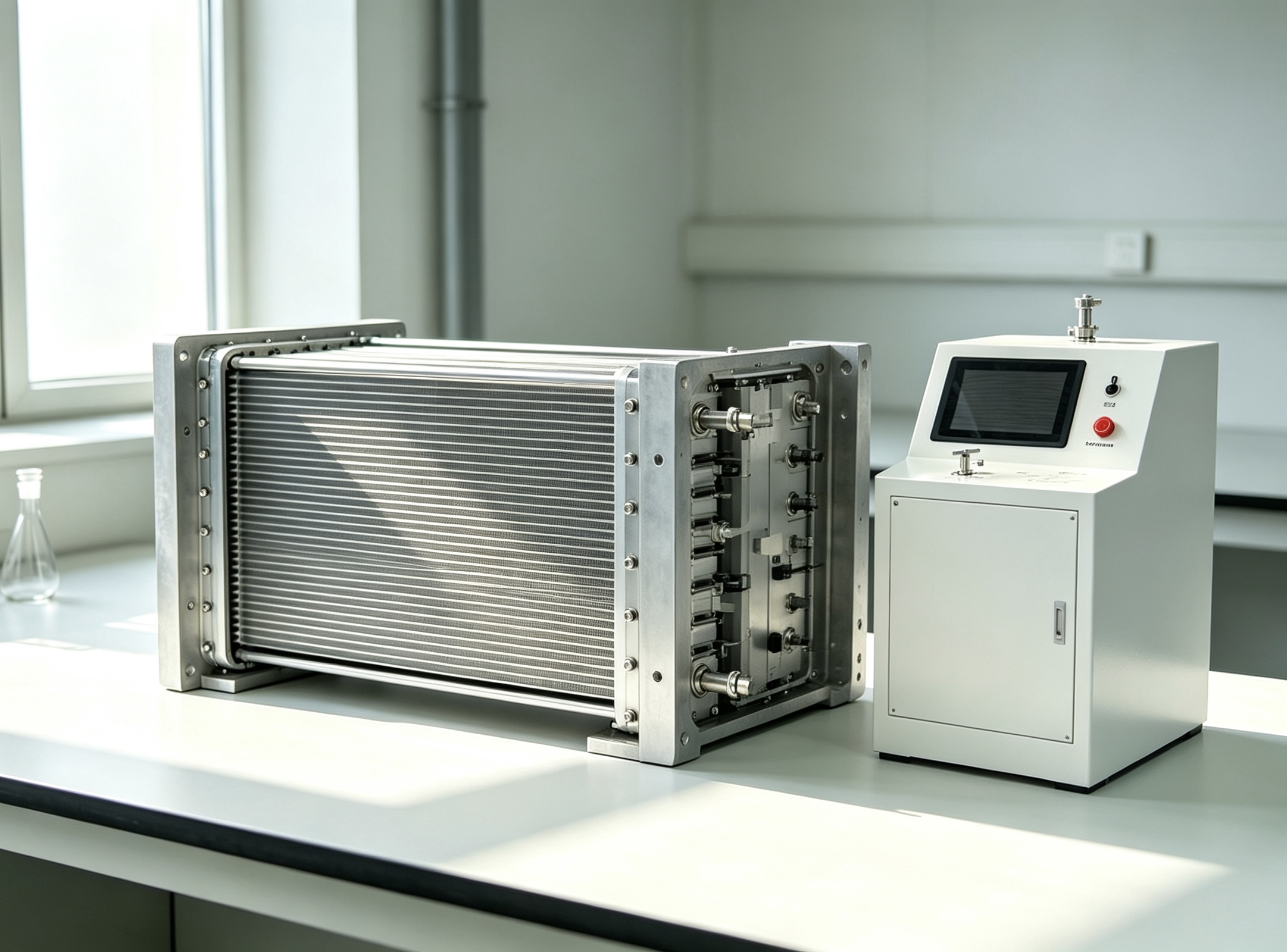

Fuel Cell R&D and Test Benches
Stable pressure for long test cycles. Closed-loop control holds setpoints automatically through hours of durability runs. Oil-free compression protects sensitive MEAs, and the compact unit sits right beside the bench — overnight tests finish safely, unattended.
02

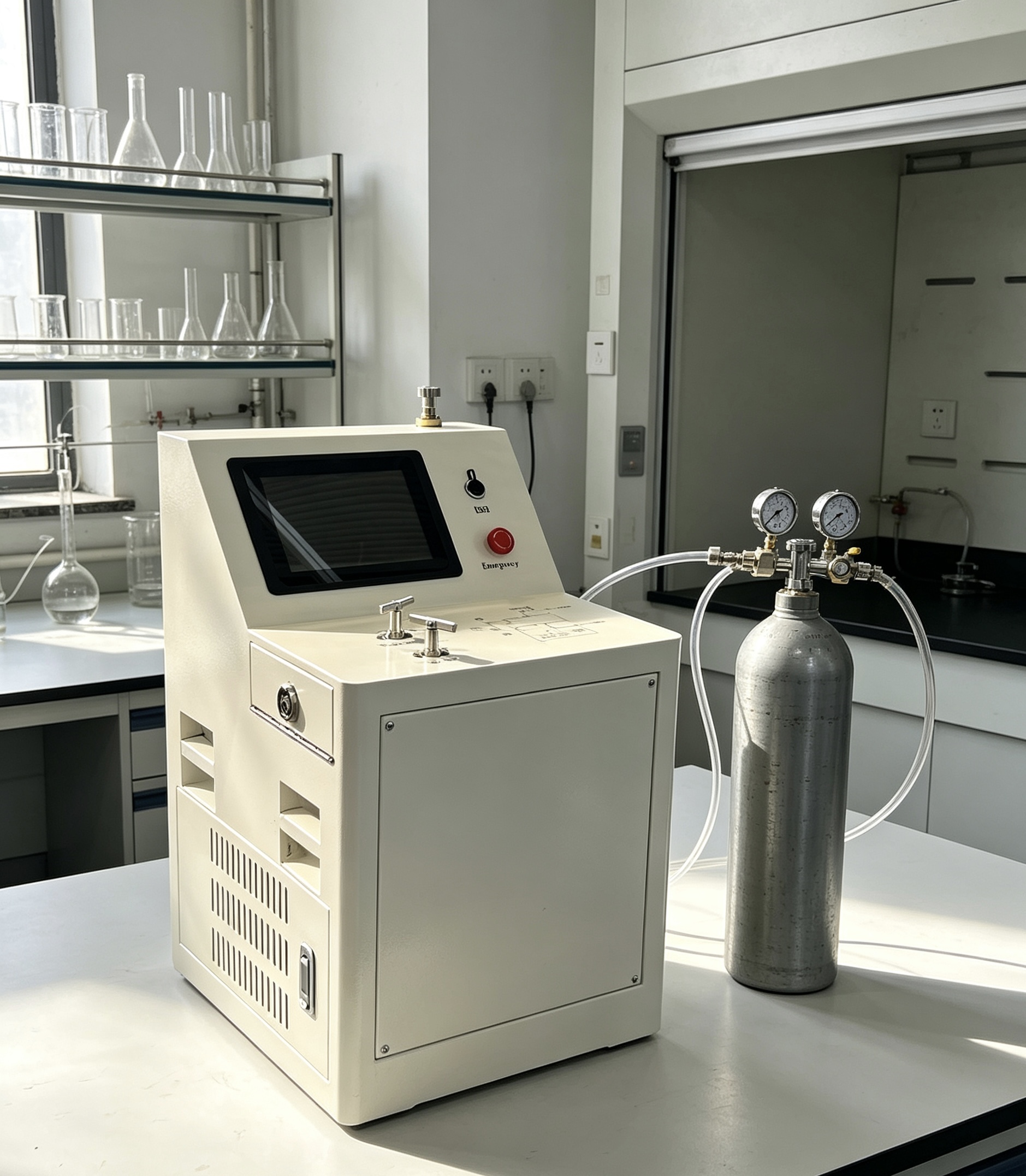

University and Research Laboratories
Safe, simple, shareable. Standard 220 V power, one-button control, minimal training — ideal for student environments. The portable model rolls between labs; H2 / N2 / He capability serves multiple departments. Trusted by Fudan University, SJTU and more.
03

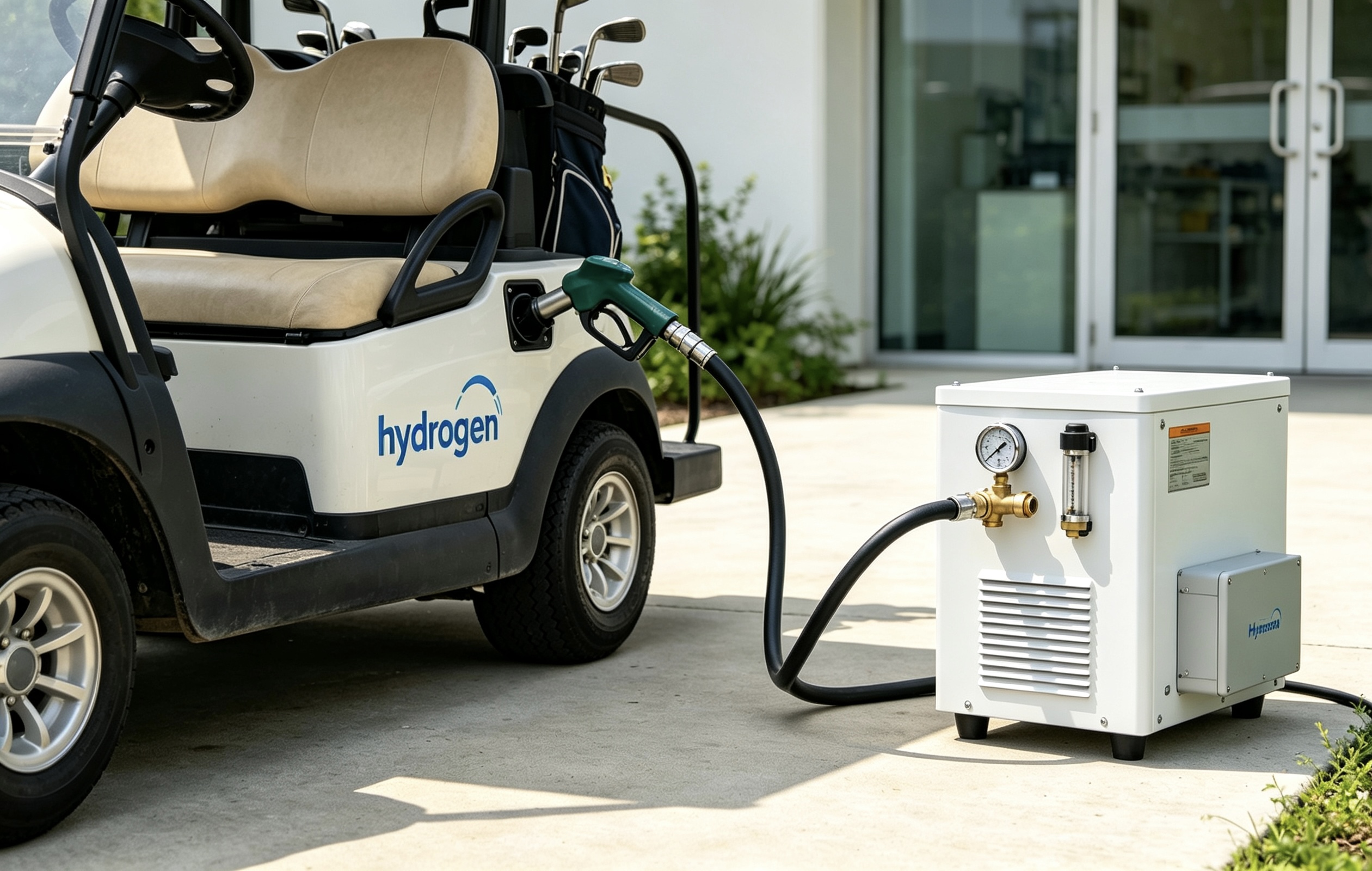

Hydrogen Cylinder Filling & Small Refueling

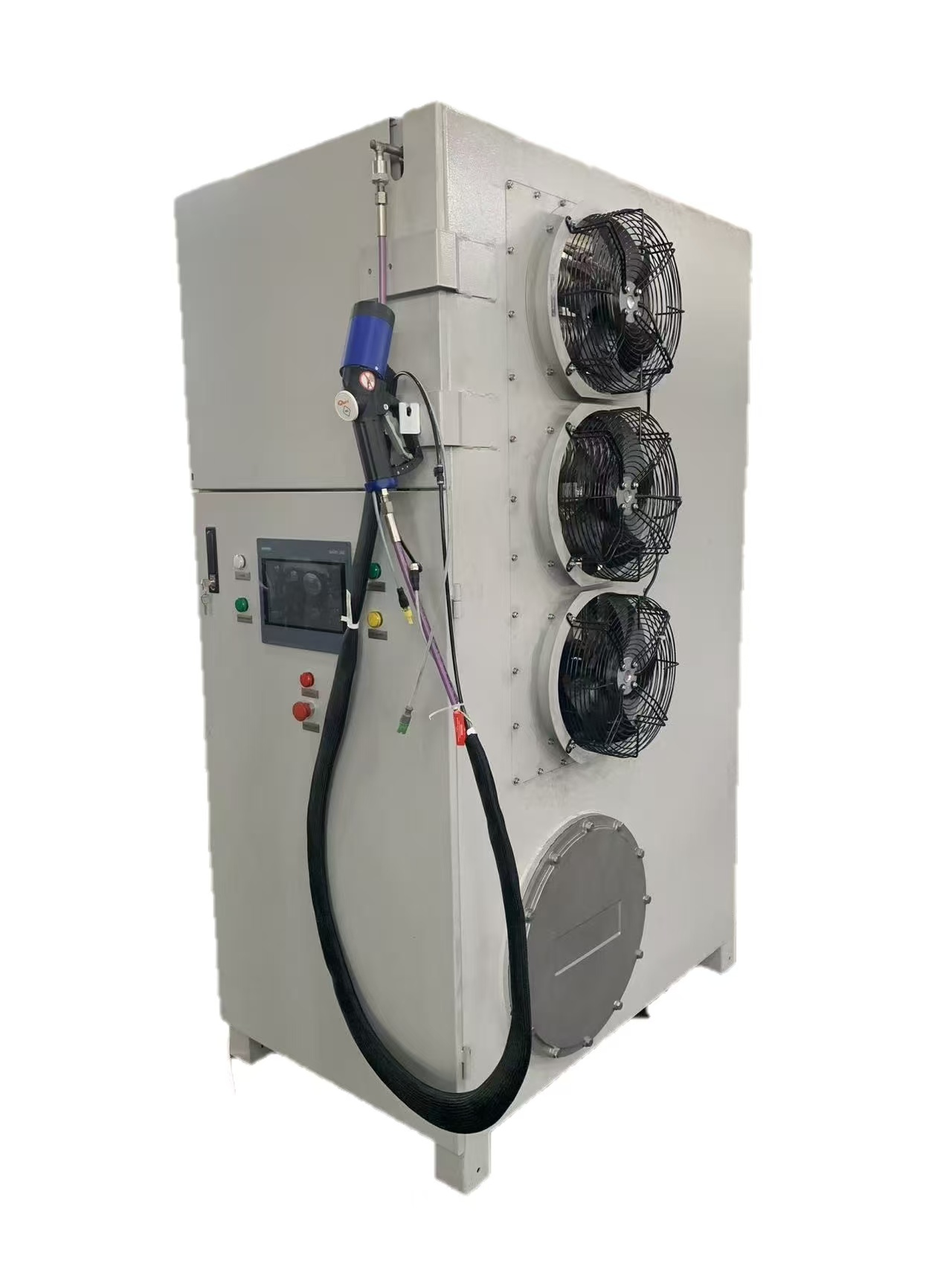

Stop wasting residual gas. Transfer hydrogen from low-pressure cylinders into working storage up to 35 MPa — or 70 MPa with the YGS model. The 700 bar YGS fills vehicle-grade storage directly, in a low-noise cabinet that installs anywhere.
04
Hydrogen Supply for Fuel Cell Power Systems
Keep your generators fed and ready. Backup and stationary fuel cell systems depend on a steady on-site hydrogen supply. Our boosters raise cylinder or bundle pressure to the exact feed level your power system needs — automatically, around the clock. Pair with HydroXcel’s 1–20 kW or 50 kW–1 MW fuel cell generators for a complete power solution.
Proven Overseas Performance
HydroXcel equipment is not only proven at home — it is running safely and reliably for customers around the world. Our compressors and fuel cell systems have been exported to and are operating in Greece 🇬🇷, Chile 🇨🇱, the United States 🇺🇸, Australia 🇦🇺 , Malaysia 🇲🇾 and more. We support every overseas project with complete English documentation, remote commissioning guidance, fast spare-parts supply and lifetime technical consultation — so distance never becomes a risk to your operation.
10+
Export Countries & Regions
24h
Technical Response Time
10 Yrs
Design Life
Lifetime
Free Technical Consultation
Frequently Asked Questions
Which model should I choose?
There is no need to figure it out alone. Our engineers will select the exact model for you based on your inlet pressure, target outlet pressure, voltage, required flow rate and application scenario. Simply contact us for a quotation — tell us these five parameters, and we will respond with a tailored recommendation and full technical proposal.
Is the compression really oil-free?
Yes. The direct-drive design uses no oil in the compression chamber — a key advantage over hydraulic-drive compressors.
Can you customize pressure and voltage?
Yes. Inlet/outlet pressure, voltage and structure can be customized with no minimum order quantity.
What after-sales support is included?
All units include lifetime free technical consultation, training and remote support.
Need a Quote or Technical Proposal?
Send us your inlet pressure, target pressure, voltage, flow and application — our engineers will respond with a tailored solution.
